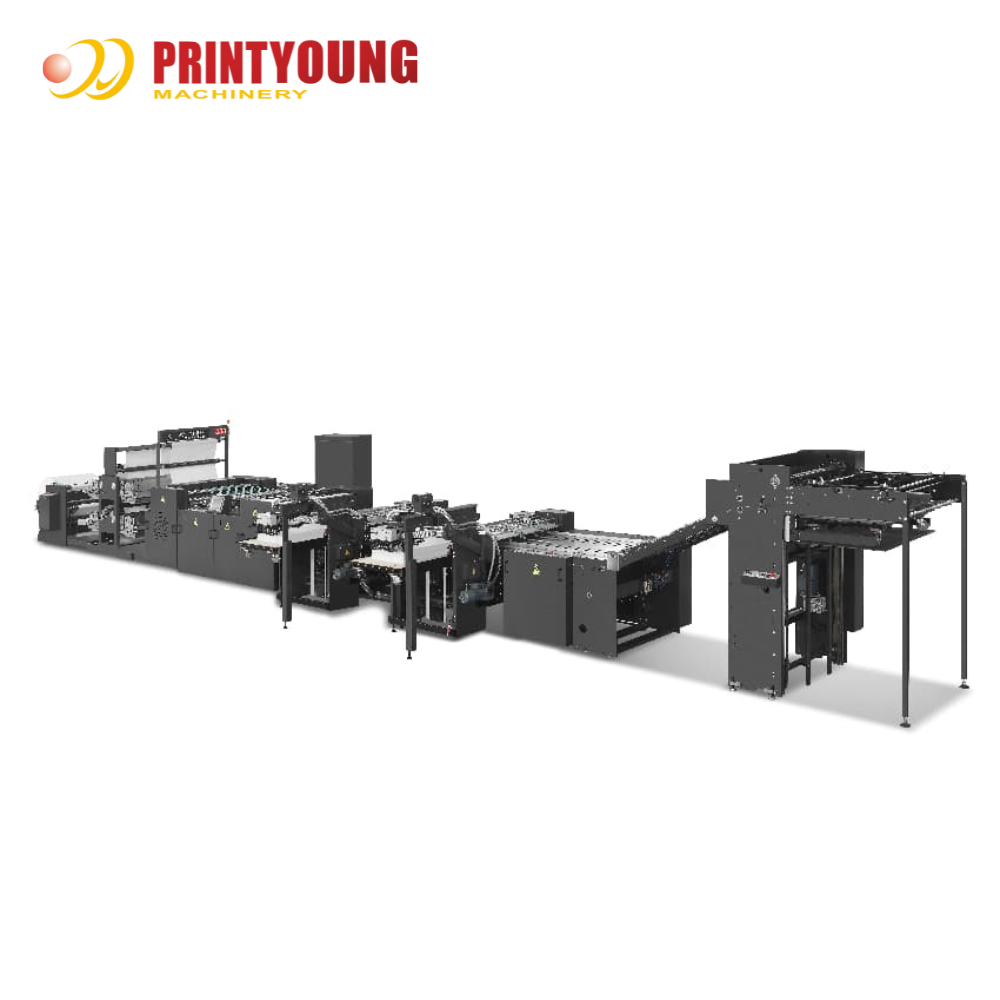

Name: PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-1020AFG
Price: 100000 USD
Availability: InStock

PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed

اطلاعات پایه

محل منبع:	چین
نام تجاری:	PRINTYOUNG
گواهی:	CE
شماره مدل:	PRY-1020AFG

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	USD 100000 Set
جزئیات بسته بندی:	بسته بندی ضد رطوبت و ضد ضربه را اتخاذ می کند که برای حمل و نقل جاده ای در مسافت های طولانی و انواع م
زمان تحویل:	30 روز کاری
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	30 ست در ماه

اکنون تماس بگیرید

حداکثر قطر رول:	1300 میلی متر	عرض کاغذ:	680 ~ 1020 میلی متر
وزن کاغذ قابل اجرا:	50 تا 130 گرم در متر مربع	تکرار طول چاپ:	300 ~ 680 میلی متر
حداکثر عرض چاپ:	1020 میلی متر	حداکثر سرعت چاپ:	300 متر در دقیقه
حداکثر تعداد نسخه هایی که باید صادر شود:	55 کپی در دقیقه	مشخصات برش:	300 ~ 680 میلی متر
صفحات لایه بندی شده:	5 تا 50 صفحه	وزن کاغذ جلد:	60 تا 300 گرم
برجسته کردن:	Automatic double feeder flexo printing machine , High speed 2-color in-line flexo printer , 300 M/min print speed flexo machine

PRY-1020AFG Double Feeder Flexo Printing Machine

Features

1.This machine employs advanced technologies including microcomputer control,

photoelectric tracking,pneumatic-liquid linkage,touchscreen human-machine interface operation,and ink-based flexographic printing.The production line features a roller paper unwinding and flattening process,double-sided dual-color flexible printing,horizontal sheet cutting,multi-page layering,vertical cutting,and platform-based paper stacking,making it an ideal mechanical solution for coil-based printing of inner core pages.

2.This operation can be performed by a single captain.
3.constituent
One set of unwinding sleeves
Double-sided two-color printing
A set of cutting sleeves
A set of paper sets (digital program control)
Two sets of suction and delivery Feeders
A set of high-income part sets
A set of electrical control system

Technical Parameters

The Maximum Diameter of the Roll	1300 mm
The Width of the Paper	680 ~ 1020 mm
Applicable Paper Weight	50 ~ 130 g/m²
Repeat Print Length	300 ~ 680 mm
Maximum Printing Width	1020 mm
Maximum Printing Speed	300 m/min
The Maximum Number of Copies to be Issued	55 copies per minute
Slitting Specifications	300 ~ 680 mm
Layered Pages	5 ~ 50 pages
Cover Paper Weight	60 ~ 300 g

Configuration

Unwinding Part

1.Quantity of roll paper: 1pc
2.Paper roll diameter: 1300mm
3.Paper roll width: 1020mm
4.Web lifting: The motor chain lifting method is adopted
5.Tension braking: Magnetic particle braking system is adopted
6.Web clamping method: Adopt air shaft type
7.Tension control system: Fully automatic,floating roller type

Printed Parts

1.Number of process color groups,4 printing color sets,cast iron wall panels,timing belt drive.
2.Manner,single-paper,double-sided,two-colored
3.Printing format: Maximum circumference: 680mm
4.Maximum width: 1020mm

5.Printing speed: Maximum printing speed: 300m/min

Cut the Part

1.Slitting knife shaft 1 set Bed knife: Holder mounting Upper knife: Rotating knife roller + knife blade

2.Traction unit 1 set The traction rollers are steel rollers

The pressure roller is a rubber roller

The traction rollers are clamped with cylinders

3.Slitting accuracy Cutting length tolerances +/-1mm<1000mm Slope tolerance +/-1mm/1000mm

4.Main motor
The main motor is a 15kw AC motor installed in the slitting component

Page Count

1.Count
Count range: 10-100 pages (5-50 sheets fold)
2.Clamp delivery
2 sets of clamping units
Clamp feeding drive utilizes cam curve mechanical drive
Clamping control utilizes cam curve mechanical control
3.Transportation method
First, use a flat belt for continuous conveying,and then use a synchronous belt for intermittent conveying
