Name: PRY-350 Plastic Spiral Book Binding Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-350
Price: 9500 USD
Availability: InStock

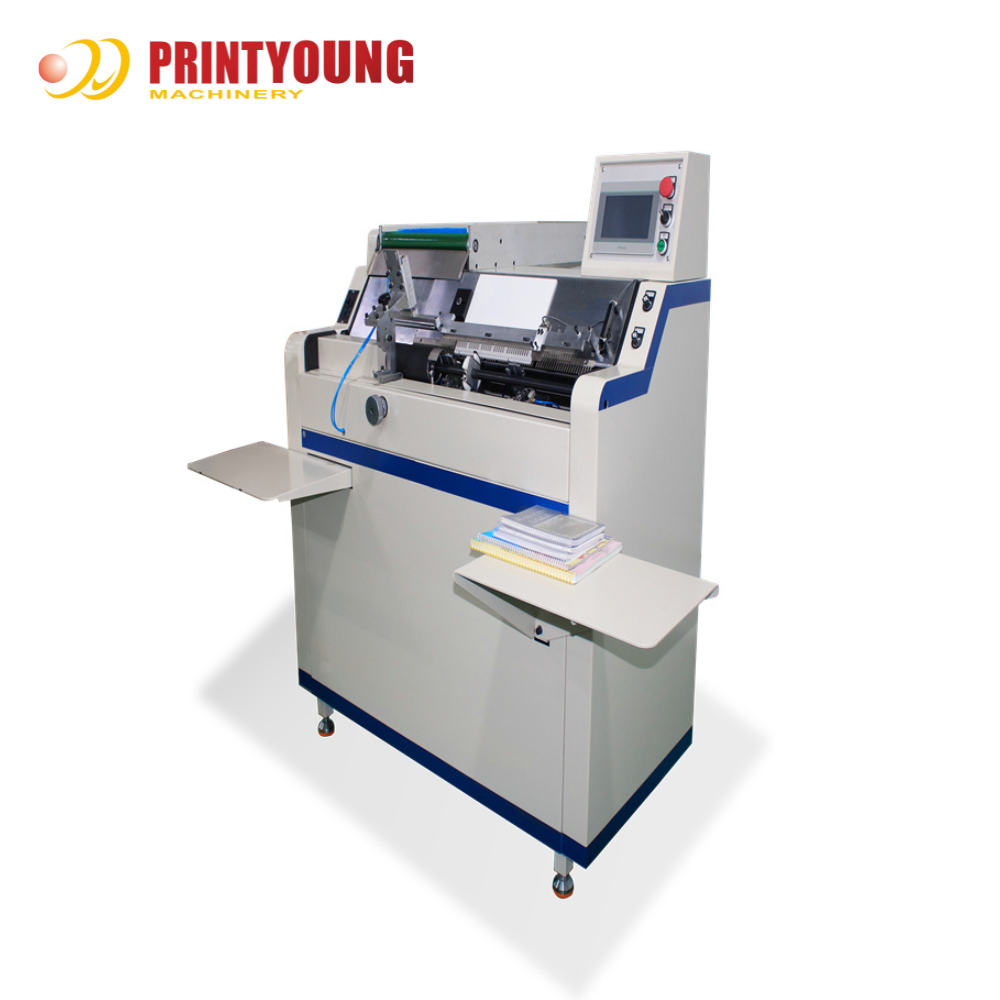

PRY-350 Plastic Spiral Book Binding Machine

اطلاعات پایه

محل منبع:	چین
نام تجاری:	PRINTYOUNG
گواهی:	CE
شماره مدل:	PRY-350

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	USD 9500 Set
زمان تحویل:	30 روز کاری
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	30 مجموعه در هر ماه

اکنون تماس بگیرید

سرعت کار:	500 تا 100 کتاب در ساعت	<i>Min.</i> <b>حداقل</b> <i>binding size</i> <b>اندازه صحافی</b>:	135 میلی متر
حداکثر اندازه اتصال:	350 میلی متر	قطر مارپیچ:	5/16 ~ 3/4
زمین:	4:1/6mm/5:1/3:1	فشار هوا:	0.6 ~ 0.8 مگاپاسکال
وزن دستگاه:	380 کیلوگرم	قدرت:	220 ولت / 50 هرتز / 1.5 کیلووات

PRY-350 Plastic Spiral Book Binding Machine

Features

* Simple to operate,automatic feed the plastic spiral,automatic insert the plastic spiral, automatic cut and close the end.

* Can bind 500-1000 books/hr,according to the book size and operator's working speed.

* Book thickness range is wide,from 5-13mm.For plastic spiral wire spec range is 5/16" to 5/8 ".

* Suitable for Diary,notebook,hand-pad,all kind of loose-leaf product binding use.

* The beautifully outlooks.

* Easy to change the pitch.

Technical Parameters

Working Speed					500 ~ 100 books/hour
Min. Binding Size					135 mm
Max. Binding Size					350 mm
Spiral Diameter					5/16 ~ 3/4
Pitch					4:1/6mm/5:1/3:1
Air Pressure					0.6 ~ 0.8 MPa
Machine Weight					380 kg
Power					220V / 50Hz / 1.5kw
Machine Dimension					1500 * 1700 * 1400 mm

Configuration

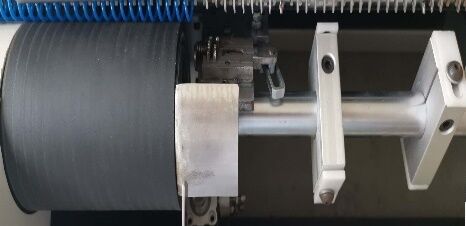

Two deliver belt control the plastic spiral feed one by one.

The electronic parts in our machines:include CHNT,MITSUBISHI,Ormon.

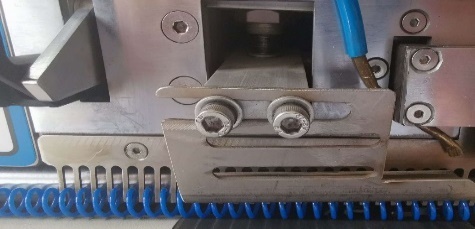

This part help to make the spiral move in a straight so that it will be easy to insert in the book.

This parts assist the plastic spiral move forward.

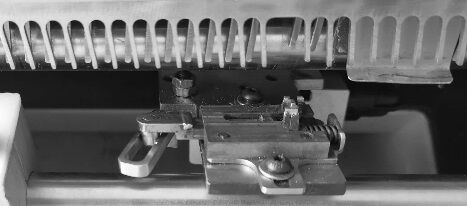

The pitch,it can be changed for different size. Such as 4:1/6mm/5:1/3:1.

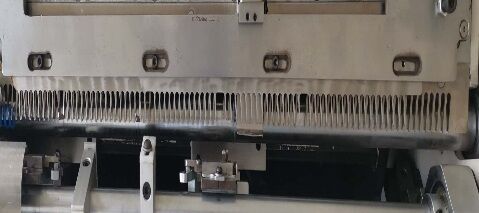

Cutter:cut the plastic spiral and close the end.

Applications

Plastic spiral binding machine,automatic insert spiral,automatic bending and closing hook,widely used in all kinds of children's books,picture a1bums,picture books,and coil books Solve the industry’s pain points in the traditional production process that plastic spiral binding can only be done manually!
