Name: TC-650S Fully Automatic Paper Box Window Patching Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: TC-650S
Price: 22000 USD
Availability: InStock

TC-650S Fully Automatic Paper Box Window Patching Machine

اطلاعات پایه

محل منبع:	چین
نام تجاری:	PRINTYOUNG
گواهی:	CE
شماره مدل:	TC-650S

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	USD 22000 Set
زمان تحویل:	25 روز کاری
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	30 ست در ماه

اکنون تماس بگیرید

<i>Max.</i> <b>حداکثر</b> <i>Paper Size</i> <b>اندازه کاغذ</b>:	560 * 650 میلی متر	<i>Min.</i> <b>حداقل</b> <i>Paper Size</i> <b>اندازه کاغذ</b>:	150 * 160 میلی متر
<i>Max.</i> <b>حداکثر</b> <i>window size</i> <b>اندازه پنجره</b>:	300 * 350 میلی متر	<i>Min.</i> <b>حداقل</b> <i>window size</i> <b>اندازه پنجره</b>:	30 * 50 میلی متر
ضخامت فیلم:	0.03 ~ 0.25 میلی متر (PVC)، 0.03 ~ 0.20 میلی متر (PET)	دقت:	± 1.0 میلی متر
کاغذ Wegiht:	200 ~ 1000 گرم / ㎡	سرعت:	25000 عدد در ساعت

TC-650S Window Patching Machine

Features

With its exceptionally ergonomic design philosophy,this machine delivers high efficiency, precision,stability,and user-friendly operation.It is compatible with both cardboard and corrugated paper,utilizing a non-stop bottom-feeding system that individually separates sheets from the paper stack.Through processes including push-chain positioning, flexographic glue application,and stable,precise film cutting and cross-cutting,it achieves seamless film lamination for windows on various packaging such as tissue boxes,gift boxes, toy boxes,shirt packaging,and so on.

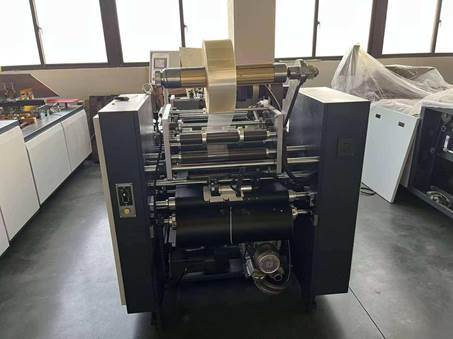

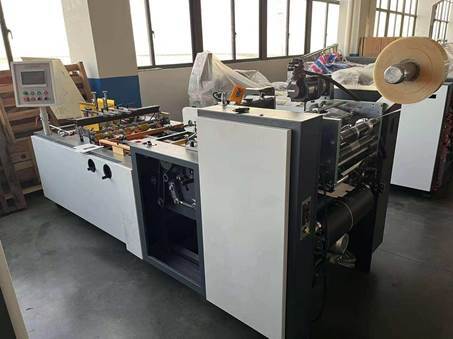

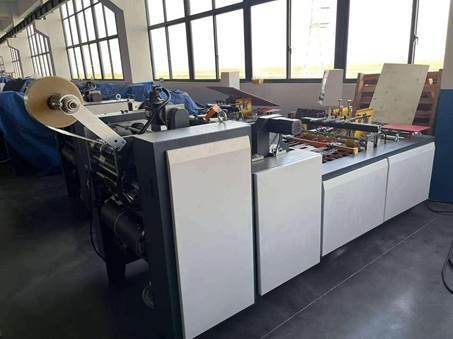

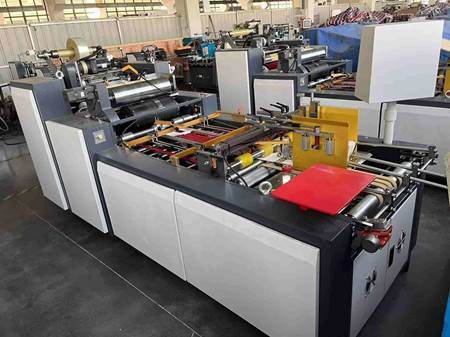

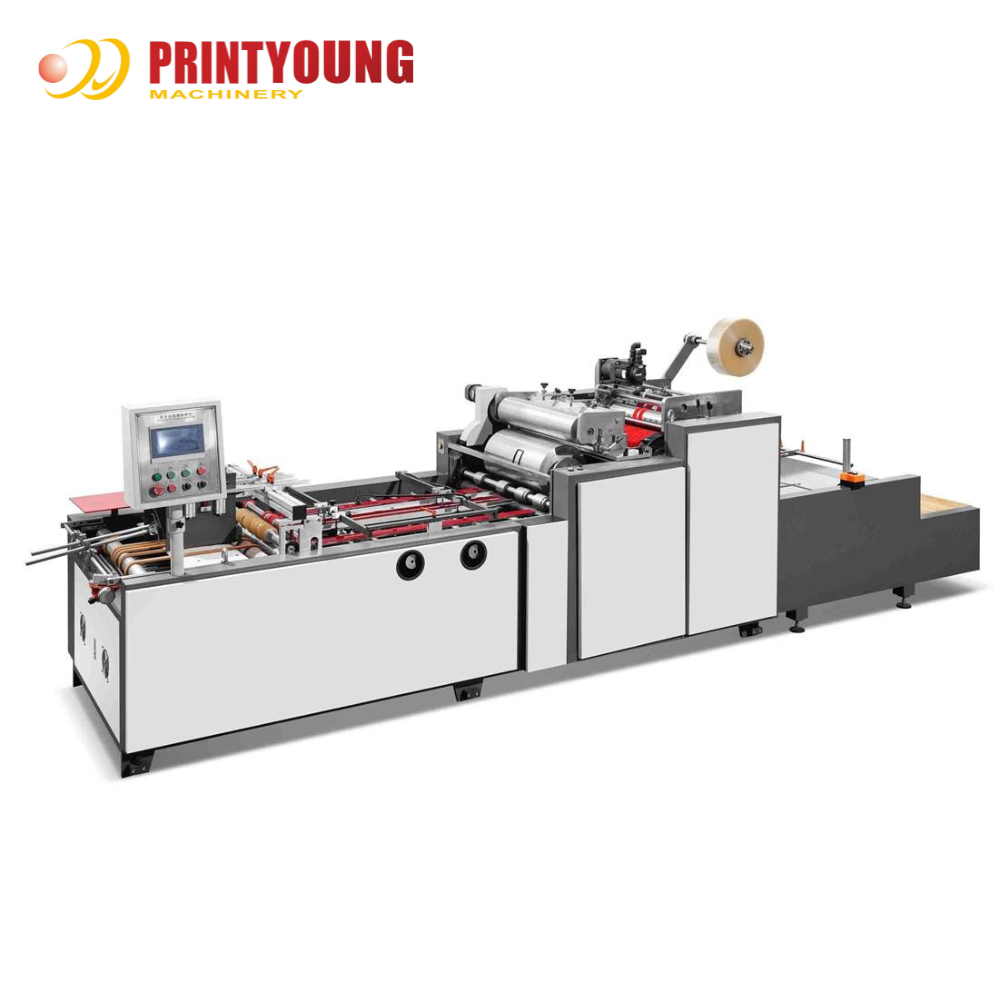

Machine Picture

Technical Parameters

Model	TC-650S
Max. Paper Size	560 * 650 mm
Min. Paper Size	150 * 160 mm
Max. Window Size	300 * 350 mm
Min. Window Size	30 * 50 mm
Film Thickness	0.03 ~ 0.25 mm (PVC) , 0.03 ~ 0.20 mm (PET)
Accuracy	± 1.0 mm
Paper Wegiht	200 ~ 1000 g/㎡
Speed	25000 pcs/h
Power	6.4 kw
Machine Weight	1735 kg
Machine Size	5120 * 1420 * 1550 mm

Applications

Fully automatic window patching machine is a specialized equipment designed for laminating film onto windowed gift boxes,color cartons,and other packaging products.It represents the most advanced model of window patching machines currently available in the domestic market.
