Name: JPW100QT-DZ Horizontal Full Automatic Continuous Waste Paper Recycling Press Baler
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: JPW100QT-DZ
Price: 68000 USD
Availability: InStock

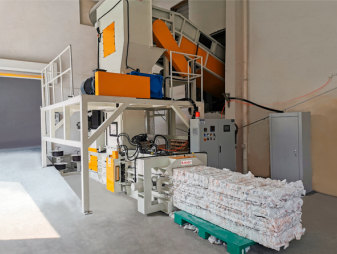

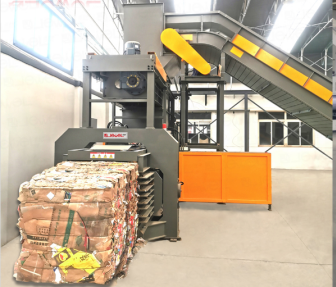

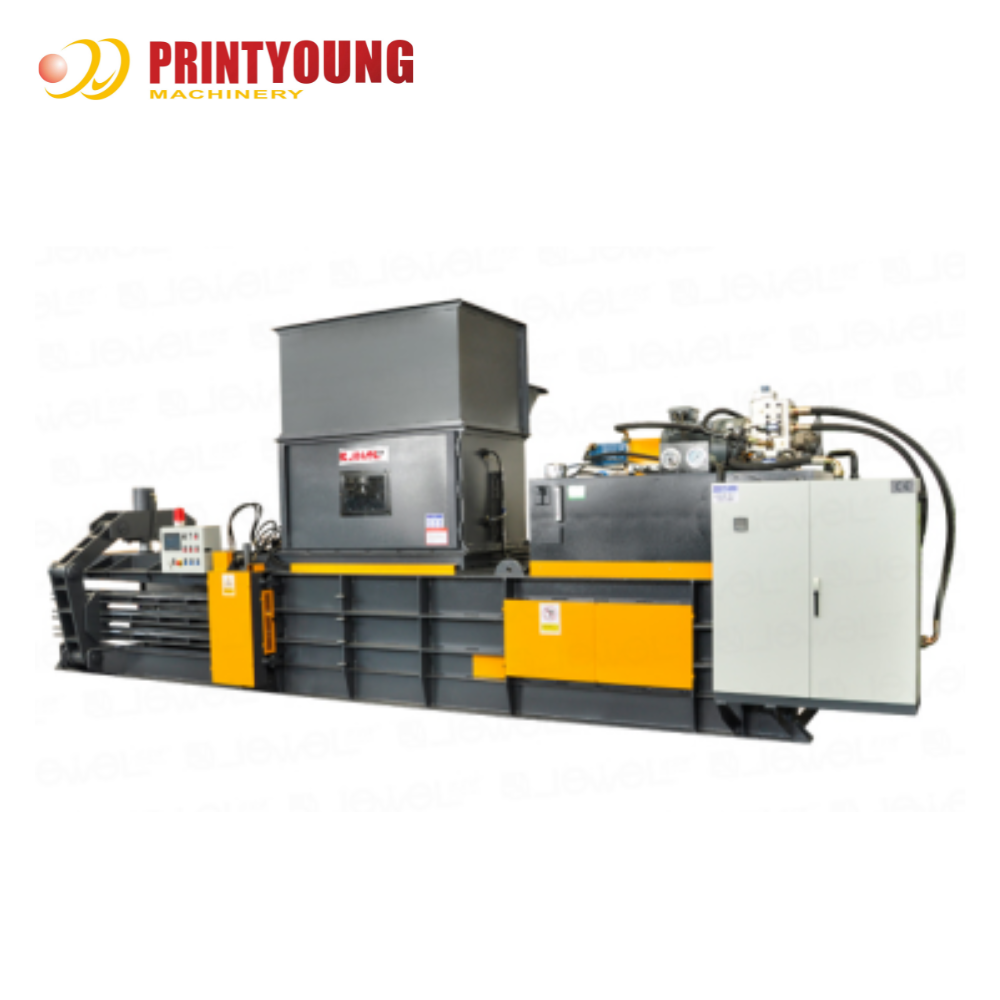

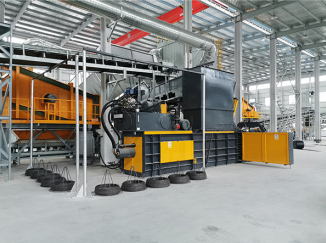

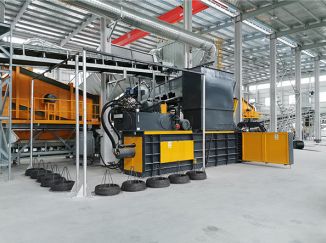

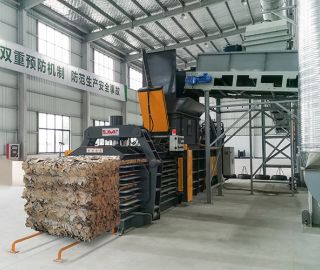

JPW100QT-DZ Horizontal Full Automatic Continuous Waste Paper Recycling Press Baler

اطلاعات پایه

محل منبع:	چین
نام تجاری:	PRINTYOUNG
گواهی:	CE
شماره مدل:	JPW100QT-DZ

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	USD 68000 Set
زمان تحویل:	90 روز کاری
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	10 مجموعه در هر ماه

اکنون تماس بگیرید

مدل:	JPW100QT-DZ	قدرت هیدرولیکی:	100 ت
اندازه بیل:	W1100 * H1100 * L (300 ~ 2000) میلی متر	اندازه باز شدن خوراک:	L1800 * H1050 میلی متر
تراکم بیل:	حدود 450 تا 600 کیلوگرم بر متر مکعب (برای کاغذ)	توانایی:	حدود 5 تا 8 تن در ساعت
قدرت:	45 کیلووات / 60 اسب بخار	ولتاژ:	می توان سفارشی کرد
خط بیل:	4 خط	اندازه دستگاه:	حدود 8400 * 4500 * 2400 میلی متر
وزن ماشین:	حدود 13.5 تن	کنترل کنید:	صفحه نمایش لمسی PLC

JPW100QT-DZ Waste Paper Press Baler

Features

* Open type structure makes packaging conveniently,and improves work efficiency.

* Shrinking mouth,tightening and loosening through the oil cylinder automatically.

* It configures with PLC program and touch screen control,operated simply and equipped with automatic feeding detection,can compress bale automatically,realize unmanned operation.

* It designs as special automatic strapping device,quickly,simple frame,acting stably,low failure rate and easy to maintain.

* It has a function of automatic fault diagnosis,improving the efficiency of detection.

* It can set block length arbitrarily,and accurately record data of balers.

* Used the German hydraulic technology to save energy and protect environment.

* Adopt the vessel classification of welding process to ensure that equipment is more stable and reliable.

* Adopt the British imported seals improve the service life of the cylinder.

* Block size and voltage can be customized according to customers' reasonable requirements.Bales weight depends on different materials.

Technical Parameters

Model		JPW100QT-DZ
Hydraulic Power		100 T
Bale Size		W1100 * H1100 * L(300 ~ 2000) mm
Feed Opening Size		L1800 * H1050 mm
Bale Density		about 450 ~ 600 kg/m³ (for paper)
Capability		about 5 ~ 8 ton/hour
Power		45kw / 60HP
Voltage		can be customized
Bale Line		4 lines
Machine Size		about 8400 * 4500 * 2400 mm
Machine Weight		about 13.5 ton
Control		PLC touch screen

* The conveyor is made of all steel construction,durable

* Easy to operate,safety,low failure rate.

* Set the pre -embedded foundation pit,put the conveyor horizontal part into the pit,during feeding,push the material directly to the pit continuous,high efficiency when transport the materials.

Steel Chain Conveyor
Width		1500 mm
Length		11 m
Material		steel plate
Driving Model		chain drive

Applications

Middle-sized automatic horizontal model,widely used in waste disposal station,waste recycle station,logistics and other places that can generate plenty of waste materials and have a request unmanned operation.Specially for different leftover material from Waste paper boxes,cardboard,die-cutting machine and plastic,PET bottles,plastic film,straw,cloth, palm fibers,fiber,cotton and other loose materials.
