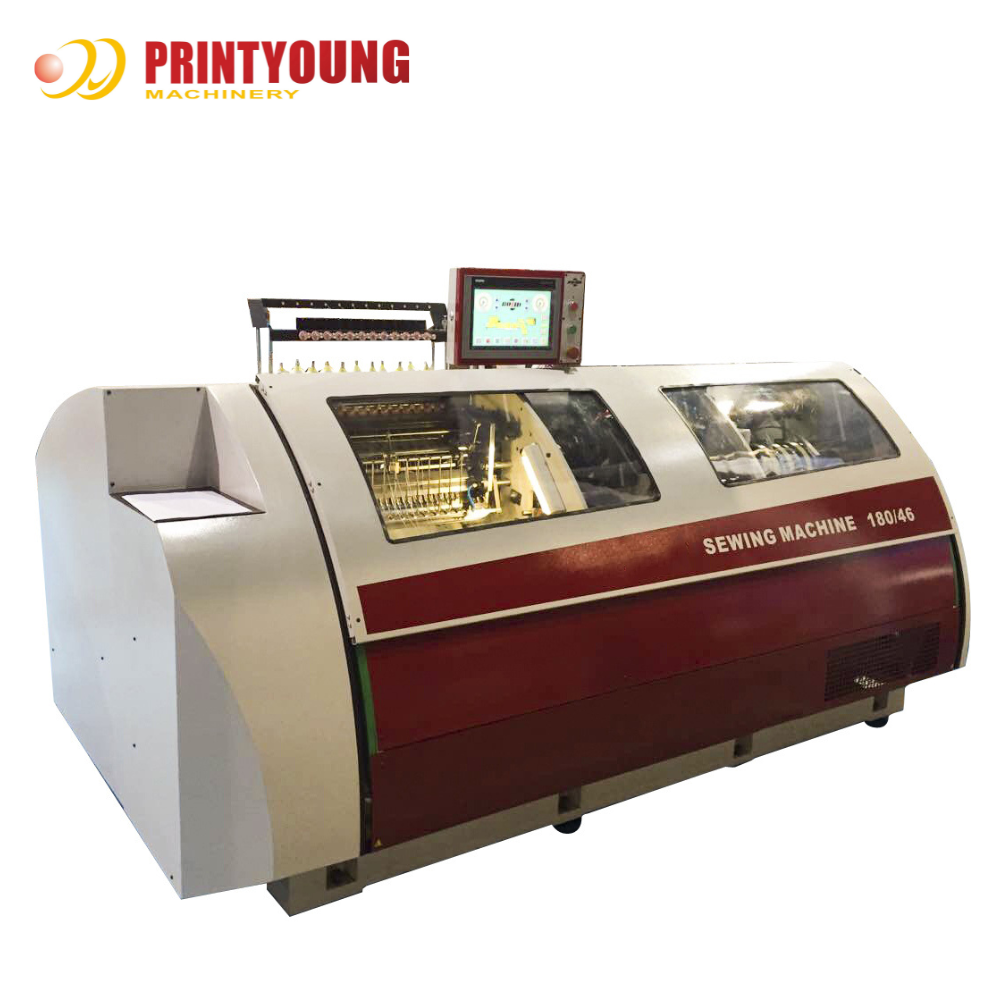

Name: PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-180/46
Price: 100000 USD
Availability: InStock

PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine

اطلاعات پایه

محل منبع:	چین
نام تجاری:	PRINTYOUNG
گواهی:	CE
شماره مدل:	PRY-180/46

مقدار حداقل تعداد سفارش:	1 ست
قیمت:	US 100000 Set
جزئیات بسته بندی:	بسته بندی های ضد رطوبت و ضد شوک را اتخاذ می کند که برای حمل و نقل جاده ای از راه دور و انواع مختلف ش
زمان تحویل:	30 روز
شرایط پرداخت:	L/C ، T/T
قابلیت ارائه:	30 مجموعه/مجموعه در هر ماه

اکنون تماس بگیرید

حداکثر سرعت:

180 بار در دقیقه

حداکثر اندازه اتصال:

460 * 320 میلی متر

Min. حداقل binding size اندازه صحافی:

120 * 75 میلی متر

تعداد سوزن ها:

11 گروه

فاصله سوزن:

19 میلی متر

قدرت:

9 کیلووات

هوای فشرده:

40 nm³ / 6bar

وزن خالص:

3500 کیلوگرم

PRY-180-46 Automatic Book Sewing Machine

Features

1.Can produce up to 10,000 signatures per hour to achieve high efficiency and low cost.

2.Enhance production speed.The max speed of dealing normal paper and coated paper can reach 180 cycle/min.

3.The design of PLC programmed color touched control panel makes the machine possess the functions like non-stop,brief & fast program setting,different sewing program storage, product data display and adjusting automation etc.

4.Frictionless feeding design can process kinds of various signatures.

5.All feeding processes are well controlled to ensure high speed.

6.High-speed detection setting.Using the newest intelligent analog video technology,the setting can scan the high-resolution graphics,so do the pure characters signatures.The system performs the automatic recognition memory only by one book.

7.Closed cam box design.Its drive shaft moves in the closed oil groove,which guarantee the using life of the cam,also the max non-noise,non-vibration and non-daily inspection & maintenance.The sewing saddle is very sturdy with high strength.It connected with the cam box directly,no need of any other transmission settings.

8.Vacuum signature-exposer design.All 4 satisfy the different expose requirement.The specific air blower makes an air cushion between the operating folds and the last folds, which eliminate the double sheet effectively.

Technical Parameters

Max. Speed	180 times/min
Max. Binding Size	460 * 320 mm
Min. Binding Size	120 * 75 mm
Number of Needles	11 groups
Needle Distance	19 mm
Power	9 kw
Compressed Air	40 Nm³ / 6bar
Net Weight	3500 kg
Dimension	2850 * 1200 * 1750 mm

Applications

Can be applied to wide range of paper-----light weight paper,book paper,coated paper and recycle paper.The fastest speed can be reach 180 cycles/min.Various high effective product become true for the extremely starting of the automatic edition function.Whether classic sewing or stagger stich,it perform perfect sewing quality,flexible and briefly.
