Place of Origin: | China |
---|---|
نام تجاری: | PRINTYOUNG |
گواهی: | CE |
Model Number: | PRYFQ-150 |
Minimum Order Quantity: | 1 Set |
قیمت: | US 14000 Set |
Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 30 Set/Sets per Month |
Type: | Slitting Rewinder | Voltage: | 380 V |
---|---|---|---|
Dimension: | 2100 * 1300 * 1000 mm | Material Paper: | 20 ~ 120 gsm |
Max Unwinding Diameter: | 1000 mm | Max Rewinding Diameter: | 600 mm |
Max Slitting Width: | 700 mm | Air Shaft OD: | 76 mm (3") |
Working Speed: | 10 ~ 150 m/min | Power: | 7.5 kw |
Weight: | 1700 kgs |

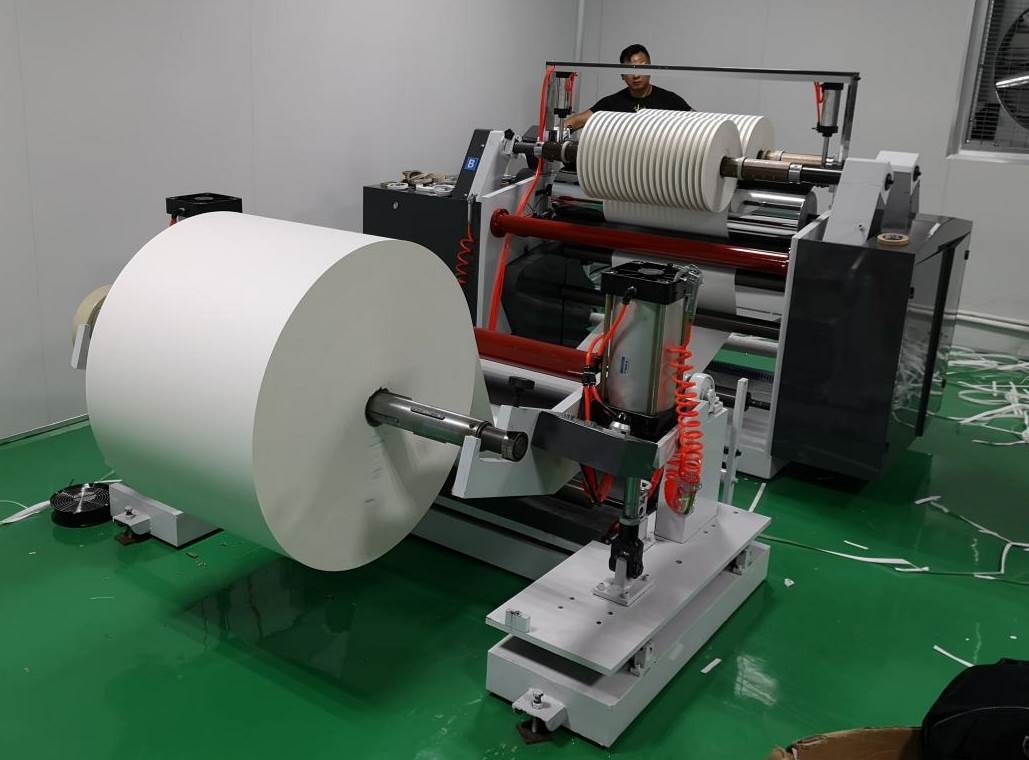

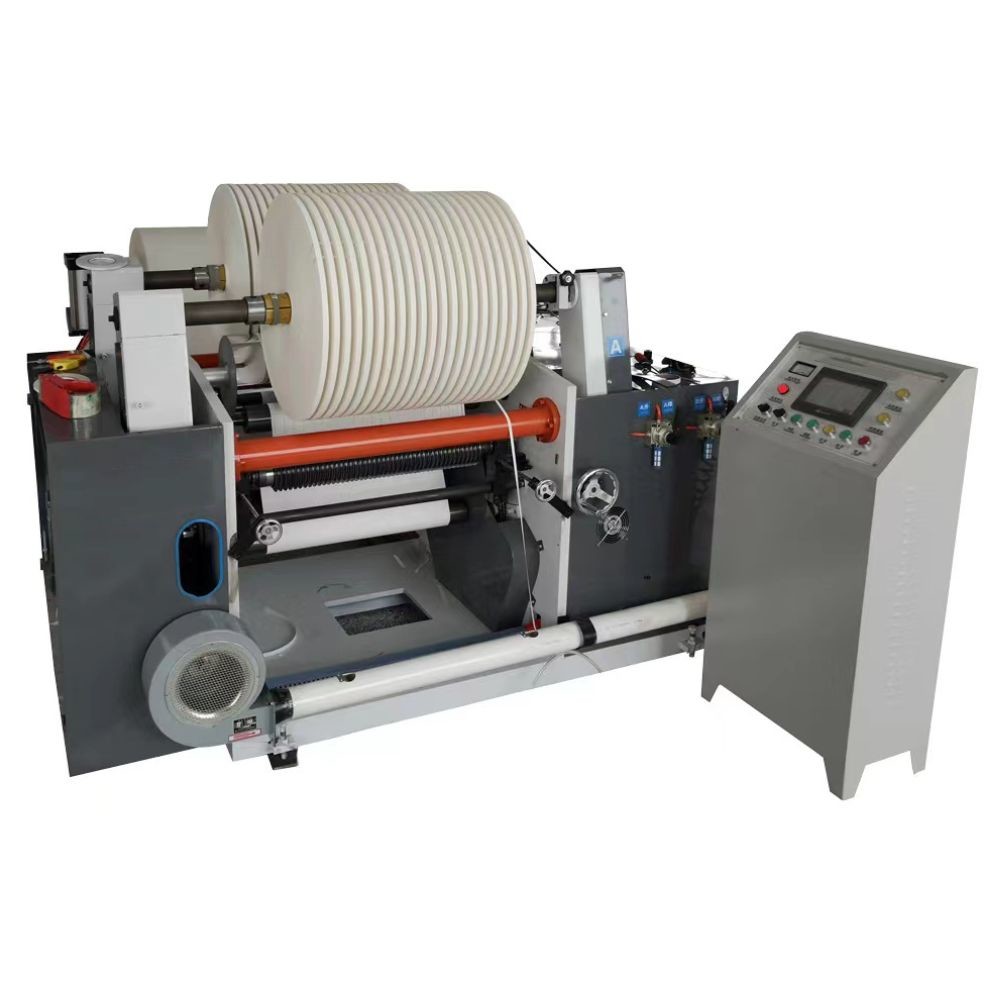

PRYFQ-150 دستگاه بازپرداخت قطعات کاغذی
|
|
مواد کاغذ
|
20 تا 120 گرم در متر مربع
|
حداکثر قطر باز کردن
|
1000 میلی متر
|
حداکثر قطر پیچاندن
|
600 میلی متر
|
حداکثر عرض برش
|
۷۰۰ میلی متر
|
OD شفت هوا
|
76 میلی متر (3 ′′)
|
سرعت کار
|
10 - 150 متر/دقیقه
|
قدرت
|
7.5 kw
|
ابعاد
|
۲۱۰۰ * ۱۳۰۰ * ۱۰۰۰ میلی متر
|
وزن
|
1700 کیلوگرم
|
